High-precision laser welding for metal fabrication, automotive, jewellery & industrial manufacturing — non-contact, fast, and reliable

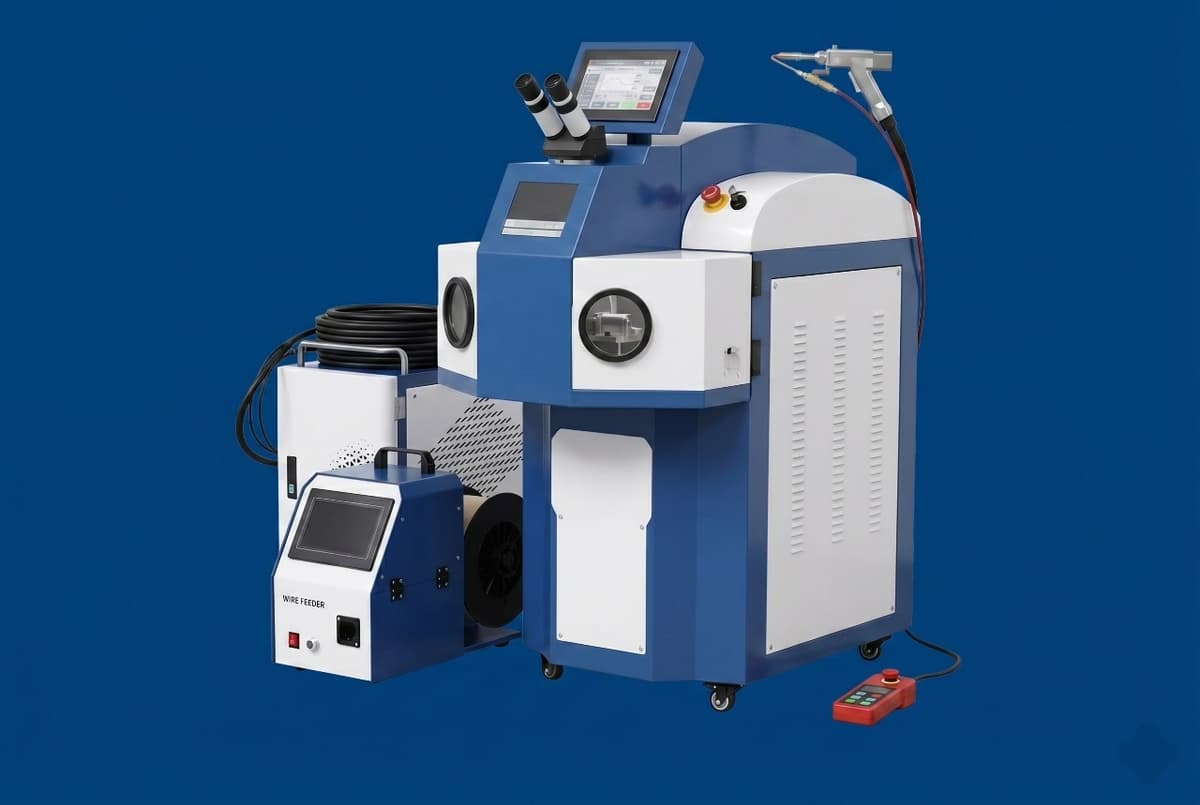

Laser Welding Machines are advanced precision systems designed for high-quality, non-contact metal joining applications across modern manufacturing industries. These machines use a high-intensity focused laser beam to deliver controlled heat energy, creating strong, clean, and reliable welds with minimal thermal impact on surrounding material. Laser welding technology provides exceptional precision, narrow heat-affected zones, and consistent performance, making it ideal for complex and delicate metal assemblies. The process ensures deep penetration welds with minimal distortion, oxidation, and material deformation — even on thin sheets and intricate geometries. These machines are suitable for welding stainless steel, aluminium, titanium, copper, brass, gold, silver, tool steel, and dissimilar metals across a wide range of thicknesses. With programmable control systems and high-speed operation, Laser Welding Machines improve production efficiency, repeatability, and weld quality significantly. Laser Welding Machines are widely used in industries such as automotive, aerospace, jewellery manufacturing, medical devices, battery production, precision engineering, and sheet metal fabrication where accuracy, strength, and minimal distortion are essential requirements.
We offer a wide range of imported laser welding machines sourced from globally recognized manufacturers. These systems meet international quality standards and are ideal for precision metal welding where conventional TIG, MIG, or spot welding methods fall short. Our imported machines deliver highly focused energy, exceptional weld repeatability, and long operational life — making them the preferred choice for metal fabricators, OEMs, and precision manufacturers across India.
A laser welding machine focuses a high-powered laser beam — typically fiber or YAG — onto the metal workpiece at the joint area. The concentrated energy rapidly heats the metal beyond its melting point, forming a molten pool that fuses the two surfaces together. As the laser moves along the weld path, the molten pool solidifies behind it, creating a strong metallurgical bond. The entire process is governed by programmable power ramp profiles and pulse control, ensuring optimal penetration and fusion without burning through or excessively heating the surrounding base material. CCD vision systems and XYZ or robotic positioning guide the beam precisely along the joint coordinates for fully automated or semi-automated production.
Standard specifications for our 500W–3000W Laser Welding Machines. Custom configurations available on request.
| Parameter | Specification |
|---|---|
| Laser Source | Fiber / YAG / Diode |
| Wavelength | 1064 nm / 1080 nm |
| Laser Power | 500W / 1000W / 1500W / 2000W / 3000W |
| Welding Spot Size | 0.2 mm – 6 mm (Adjustable) |
| Welding Speed | Up to 120 mm/s (material dependent) |
| Repeat Accuracy | ±0.03 mm |
| Positioning System | CCD Vision + XYZ Stage / Robotic Arm |
| Cooling Method | Water Cooling |
| Power Supply | 380V / 50Hz (3-phase) |
| Software | Proprietary GUI / Compatible with CAD/CAM files |
| Operating Life | 100,000+ hours (Fiber source) |
| Warranty | 1 Year (Extendable) |
* Specifications may vary by model. Contact us for datasheet.
Understanding the differences helps you choose the best welding technology for your production requirements.
| Feature | Laser Welding ✓ | TIG Welding | MIG Welding |
|---|---|---|---|
| Process Type | Non-contact | Contact (Arc) | Contact (Wire Feed) |
| Heat Precision | Very High (spot-level) | Moderate | Low |
| Heat-Affected Zone | Very Narrow | Moderate | Wide |
| Distortion | Minimal | Moderate | High |
| Welding Speed | Very Fast | Slow | Moderate |
| Automation | Fully Automatable | Semi/Manual | Semi/Full Auto |
Common questions about laser welding machines, pricing, and operation in India.
It uses a high-intensity focused laser beam to precisely fuse metals or thermoplastics. It is widely used for high-precision joining in the automotive, aerospace, medical, electronics, and jewellery industries.
It works with stainless steel, mild steel, aluminium, titanium, copper, brass, gold, silver, and dissimilar metal combinations. Depending on laser power, it can weld sections from 0.1 mm to over 10 mm thick.
Laser welding offers faster speeds, deeper penetration, and minimal heat distortion due to a narrow heat-affected zone. It is a non-contact process that can be fully automated and rarely requires filler material.
Prices typically range from ₹5 Lakhs to ₹50 Lakhs. Handheld fiber laser welders generally cost between ₹5 Lakhs and ₹10 Lakhs, while automated industrial systems go higher. Contact us for a live demo and custom quote.
Yes. It excels at welding ultra-thin metal sheets (from 0.1 mm) and micro-components. The highly focused beam prevents delicate parts from warping, burning, or changing structural properties.
Yes, IndiaLaser provides free on-site installation and comprehensive operator training with every machine purchase to ensure your production team can operate the system independently.
Looking for a laser welding machine price in India? IndiaLaser offers the best laser welding systems across all power levels — 500W, 1000W, 1500W, 2000W, and 3000W — suitable for small fabrication shops to large-scale industrial manufacturing facilities. Whether you need a handheld fiber laser welding machine for on-site repairs, a desktop laser welder for jewellery and dental labs, or an automated robotic laser welding system for high-volume production, we have the right solution. Our machines are available in Delhi, Mumbai, Chennai, Bengaluru, Hyderabad, Pune, Ahmedabad, and all across India with quick delivery and dedicated after-sales support. Compare our laser welding machines with conventional TIG and MIG alternatives, or contact our team for a customized quotation today.
