High-precision industrial fiber laser for permanent metal marking, engraving & traceability
.png&w=1200&q=75)

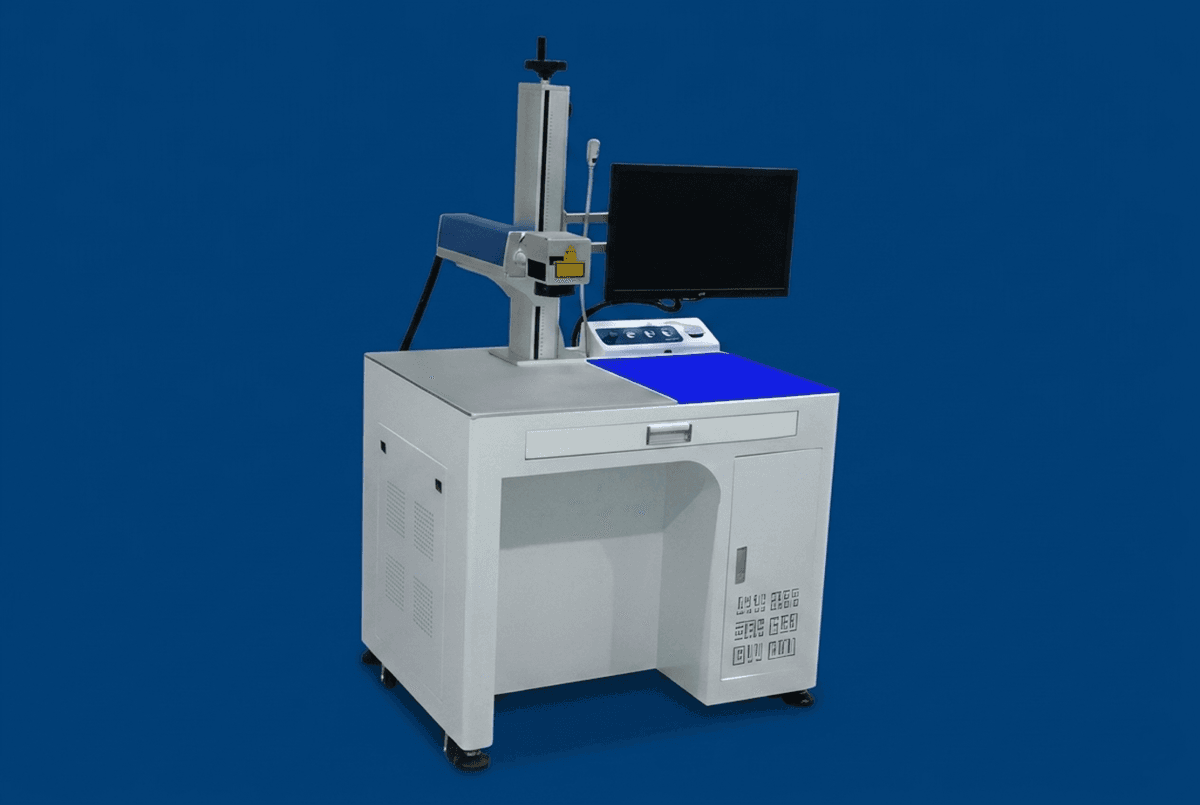

Fiber Laser Marking Machines are advanced industrial systems designed for permanent, high-speed, and precision marking on metal and selected non-metal materials. These machines use a fiber laser source to generate a concentrated laser beam that creates sharp, durable, and high-contrast markings without physical contact or consumables. Fiber laser technology is widely used across industries because of its excellent beam quality, fast processing speed, low maintenance requirements, and long operational life. It is ideal for applications such as serial number engraving, barcode marking, QR code marking, logo engraving, deep engraving, and industrial traceability. These machines can mark on stainless steel, aluminum, brass, copper, iron, titanium, gold, silver, and various coated or hard plastic surfaces with exceptional accuracy and consistency. Fiber laser systems are highly efficient, energy-saving, and suitable for continuous industrial production environments. With stable performance, precision output, and modern laser control systems, Fiber Laser Marking Machines are trusted in industries including automotive, electronics, medical devices, jewelry, tools, aerospace, and manufacturing.
We offer a wide range of imported fiber laser machines sourced from globally recognized manufacturers including Raycus, IPG Photonics, and MAX. These products meet international quality standards and are ideal for precision-based industrial applications. Our imported machines deliver superior beam quality, fast marking speed, and outstanding durability.
A fiber laser marking machine generates a high-intensity laser beam by exciting rare-earth-doped optical fibers (typically Ytterbium) using pump diodes. The concentrated 1064 nm beam is guided through a galvo scanning head — two high-speed mirrors controlled by servo motors — which direct the beam across the material surface at precise coordinates. On metals, the beam causes rapid localized heating that oxidizes or ablates the surface, creating a permanent, high-contrast mark. The entire process is controlled digitally via software, ensuring micron-level accuracy and full repeatability.
Standard specifications for our 20W–100W Fiber Laser Marking Machines. Custom configurations available on request.
| Parameter | Specification |
|---|---|
| Laser Source | Fiber (MOPA / Q-Switch) |
| Wavelength | 1064 nm |
| Laser Power | 20W / 30W / 50W / 100W |
| Marking Area | 110×110 mm to 300×300 mm |
| Marking Speed | Up to 7000 mm/s |
| Repeat Accuracy | ±0.003 mm |
| Beam Quality (M²) | < 1.5 |
| Cooling Method | Air Cooling |
| Power Supply | 220V / 50Hz |
| Software | EzCad2 / EZCAD3 Compatible |
| Operating Life | 100,000+ hours |
| Warranty | 1 Year (Extendable) |
* Specifications may vary by model. Contact us for datasheet.
Understanding the differences helps you choose the best laser marking technology for your application.
| Feature | Fiber Laser ✓ | CO2 Laser | UV Laser |
|---|---|---|---|
| Best For | Metals & hard plastics | Wood, acrylic, leather | Glass, plastic, PCB |
| Wavelength | 1064 nm | 10,600 nm | 355 nm |
| Marking Speed | Very Fast | Fast | Moderate |
| Running Cost | Very Low | Low | Moderate |
| Heat Affected Zone | Minimal | Moderate | Near Zero |
| Maintenance | Very Low | Low–Medium | Low |
Common questions about fiber laser marking machines, pricing, and operation in India.
It is designed to permanently engrave text, logos, barcodes, and serial numbers onto metals and hard materials. It serves as a vital tool across the automotive, electronics, jewellery, and medical device manufacturing industries.
It works best on metals and engineered hard plastics. Fully compatible materials include stainless steel, mild steel, aluminium, brass, copper, titanium, gold, silver, and ABS plastics.
A high-quality fiber laser source (like Raycus, IPG, or MAX) has an exceptional operational lifespan of over 100,000 hours, requiring virtually zero maintenance throughout its service life.
Prices generally range from ₹1.5 Lakhs to ₹6 Lakhs depending on laser power (20W–100W), configuration setup, and the specific source brand. Contact us for our latest promotions and a customized quote.
Yes. Our portable and desktop configurations feature compact footprints, straightforward software controls, and minimal overhead expenses—perfectly matching the needs of job shops and start-ups.
Yes, IndiaLaser provides free on-site equipment installation, parameter calibration, and hands-on software training to ensure your manufacturing team runs production independently from day one.
Looking for a fiber laser marking machine price in India? IndiaLaser offers the best fiber laser machines across all wattages — 20W, 30W, 50W, and 100W — suitable for small workshops to large-scale production facilities. Whether you need a fiber laser engraving machine for jewelry, a metal laser marking machine for automobile parts, or an industrial laser marking system for electronics, we have the right solution. Our machines are available in Delhi, Mumbai, Chennai, Bengaluru, Hyderabad, Pune, Ahmedabad, and all across India with quick delivery and dedicated after-sales support. Compare our fiber laser machines with CO2 and UV laser alternatives, or contact our team for a customized quotation today.
