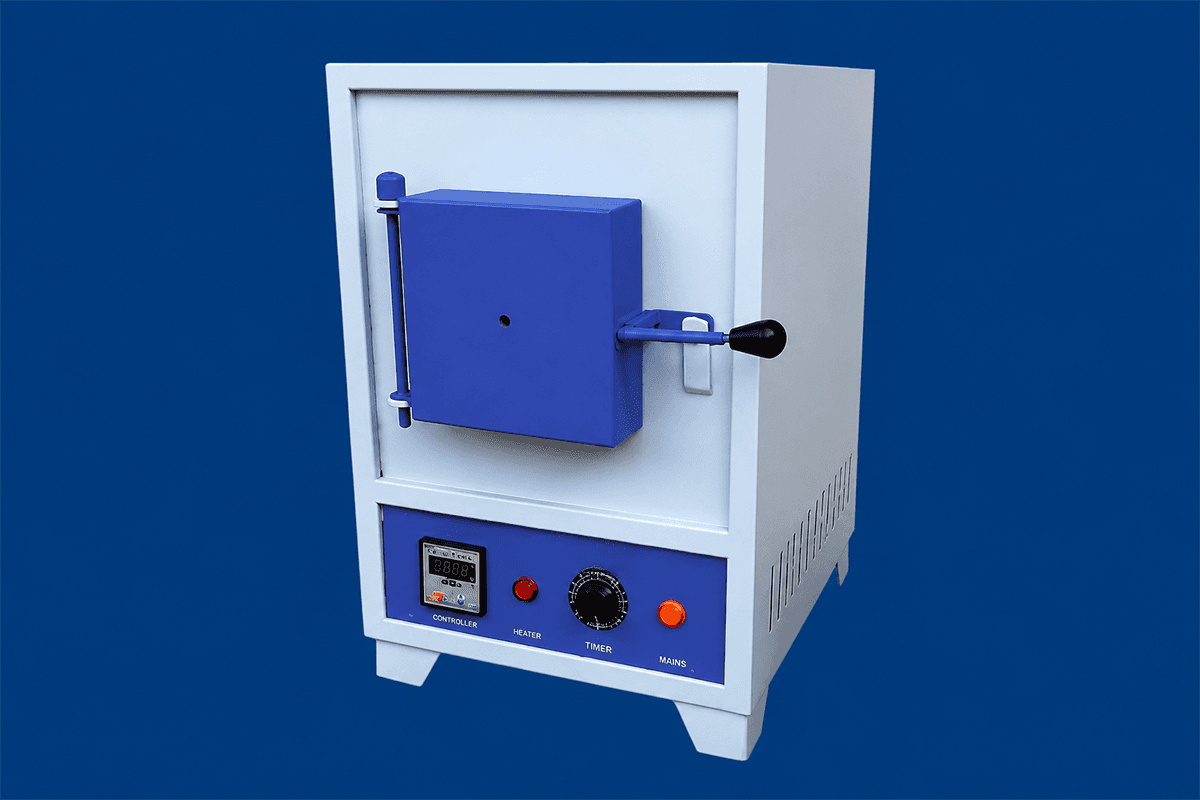

Fire Assay Furnace Machine

Fire Assay Furnace Machine

Fire Assay Furnace Machines are specialized high-temperature muffle furnaces designed for the most accurate and definitive precious metal determination available in metallurgical science. Using the centuries-proven fire assay process — encompassing fusion, cupellation, and parting — these furnaces enable laboratories to precisely quantify gold, silver, and platinum group metals (PGMs) in ore samples, mine concentrates, doré bars, bullion, and recycled metals. Fire assay furnaces deliver unmatched accuracy at trace concentrations, making them the undisputed reference method for mine exploration, refinery settlement, and arbitration testing. The process involves mixing the sample with lead oxide flux, fusing at temperatures up to 1000°C, followed by cupellation at 950°C–1000°C to absorb base metals and isolate the precious metal bead for accurate gravimetric measurement. These furnaces are essential equipment in mining assay laboratories, gold and silver refineries, BIS hallmarking centres, geological survey institutions, smelters, and precious metal recycling operations. With programmable temperature controllers, even heat distribution, and rugged refractory chamber construction, fire assay furnaces ensure consistent, reproducible results batch after batch. Fire Assay Furnace Machines are widely trusted in industries including gold mining, silver refining, platinum group metal processing, jewellery manufacturing QC, e-waste precious metal recovery, and regulatory compliance testing where absolute accuracy is non-negotiable.

Imported & Domestic Products

We offer a wide range of fire assay furnaces — both imported units from globally recognized laboratory furnace manufacturers and high-quality domestically engineered models. These systems meet international laboratory standards and are purpose-built for the demanding thermal cycles of fusion and cupellation processes. Our furnaces feature superior refractory insulation, uniform heat distribution, and long-life heating elements, making them the preferred choice for mining assay labs, refineries, and hallmarking centres across India seeking reliable and cost-effective precious metal determination equipment.

Features of Fire Assay Furnace Machine

• High-temperature capability up to 1200°C for complete fusion and cupellation of all ore types
• PID programmable temperature controller with ±1°C accuracy for consistent, repeatable results
• High-alumina refractory brick lining for excellent thermal insulation and long chamber life
• Multi-cupel capacity — process up to 12 cupels or crucibles simultaneously per batch
• Silicon carbide or Kanthal heating elements for long service life and even heat distribution
• Programmable heating ramp and soak profiles for automated fusion and cupellation cycles
• Ventilation port and fume extraction compatibility for safe laboratory operation
• Rugged steel outer casing with heat-insulated handle and door for operator safety

Advantages

• Highest accuracy of ±0.01% for gold and silver — the definitive method for mine and refinery settlement
• Detects trace precious metal concentrations down to parts-per-billion (ppb) levels in ore
• Internationally accepted reference method — recognized by ISO, ASTM, BS, and BIS standards
• Handles complex and refractory ore types that other testing methods cannot process accurately
• Batch processing capability increases laboratory throughput for high-volume assay operations
• No matrix effect limitations — fire assay accuracy is independent of sample mineralogy

How a Fire Assay Furnace Works

The fire assay process begins with preparing the sample by mixing it with a carefully weighed flux comprising lead oxide (litharge), sodium carbonate, silica, and borax. This mixture is placed in a fireclay crucible and charged into the preheated furnace at 950°C–1050°C. During fusion, the lead oxide is reduced to metallic lead, which collects all gold and silver from the sample into a lead button. The slag is poured off and discarded. The lead button is then placed on a porous magnesia cupel inside the furnace at approximately 950°C for cupellation — the cupel absorbs the lead oxide as it oxidizes, leaving behind a tiny bead of pure gold and silver alloy (the prill). The prill is weighed, then parted in dilute nitric acid to dissolve the silver, leaving the pure gold for final gravimetric weighing. The entire process yields a definitive, legally accepted result for the precious metal content of the original sample.

Types of Fire Assay Furnaces

• Fusion Furnace — High-temperature unit (up to 1200°C) for the initial flux fusion and lead collection stage
• Cupellation Furnace — Precision-controlled furnace (900°C–1050°C) for the lead oxidation and precious metal bead recovery stage
• Combined Fusion & Cupellation Furnace — Dual-function furnace capable of both stages in one unit for compact laboratory setups
• Multi-Chamber Furnace — High-capacity unit for large mining labs processing hundreds of samples daily
• Programmable Ramp Furnace — Advanced PLC-controlled models with custom thermal profiles for automated assay cycles
• Portable Assay Furnace — Compact, lower-capacity units for remote or field assay laboratories at mine sites

Applications

• Gold and silver mining — ore grade determination and mine resource estimation
• Gold refineries — incoming doré bar and outgoing bullion certification
• BIS hallmarking laboratories — reference method for dispute resolution and audit testing
• Smelters and metal processors — precious metal accounting and settlement between parties
• Electronic scrap recycling — gold and silver content determination in e-waste concentrates
• Jewellery manufacturing — alloy composition verification and quality control at production stage
• Geological survey institutions — precious metal content mapping in rock and soil samples
